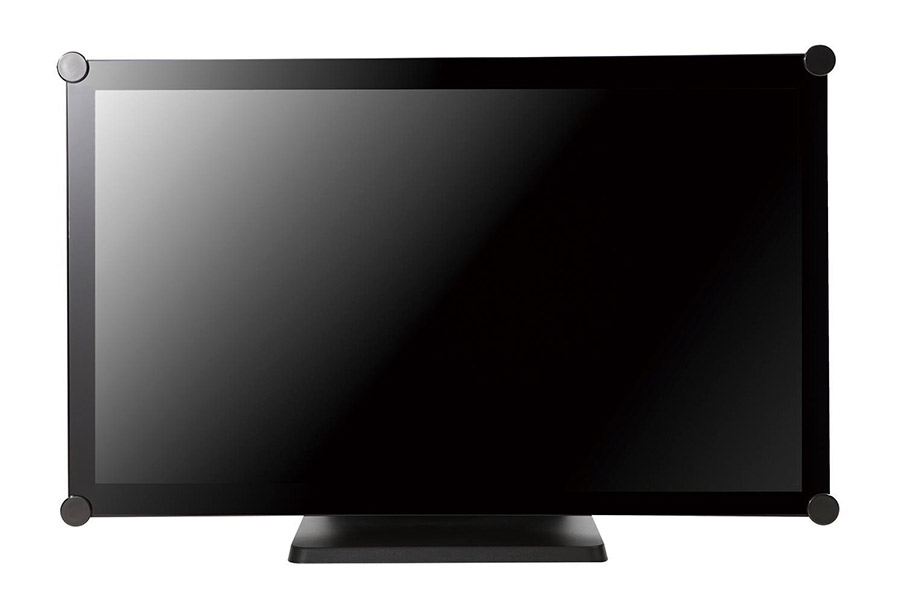

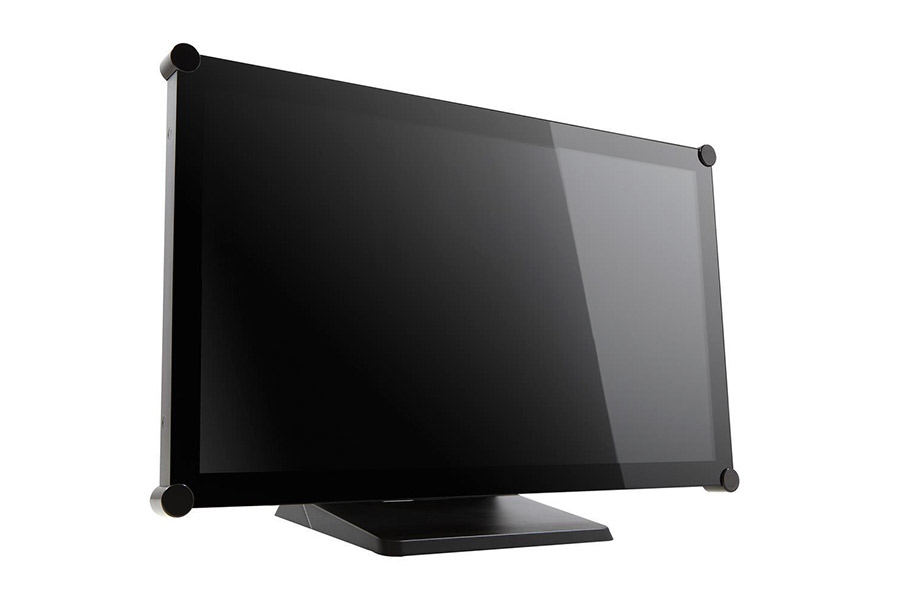

Semi-Industrial Web Terminal 22″

Three-year warranty

This range of industrial computing products is especially designed for use on production lines. Its robust screens resist to shocks and humidity.

Let’s configure your web terminal!

898,00951,00 HT

These painted steel flat screens offer higher operating resistance thanks to the high-quality mineral glass that protects the front-face screen against accidental damage. A rigorous manufacturing process hardens the optical glass to ensure a high level of robustness and quality. The hardness of the slab reaches a value of 6 on the Mohs scale. It can easily be cleaned and can sustain the possible daily damages encountered in an industrial workshop or production line. Upon customer request, 2IPS can deliver an entire series of tests related to this technology (impact resistance, waterproof front face, anti-reflection, transmission, etc.)

Features

Screen size:
22″

Format:
16/9

Native resolution:
1920 x 1080

Brightness:
250 cd/m²

Response time:
5 ms

Tactile technology:
Projective capacitive

Entry signals:
Display port / HDMI / VGA

Operating temperature:
0°C-40°C

Dimensions:
528.6 mm x 346.7 mm x 214.2 mm

Warranty:
3 years

Screen type:
LED-backlit TFT LCD

Contrast:
1000 : 1

Frequency:
50 Hz-76 Hz

Supply voltage:
DC 12V, 4A

Tactile interface:
USB (type-B)

Viewing angles:
178°/178°

Number of colors:
16.7 million

Mineral glass thickness:
2.05 mm (0.08″)

Mineral glass hardness:
> 7H

Weight with stand:
6.1 kg (13.5 lb)

Consumption:
16W (on)
